UL Certificate 70A 80A J1772 Plug Type 1 EV Connector J1772 Extension Cable

Products Mode:

Rated Current: 16A / 32A / 40A / 50A / 80A

Operation Voltage: AC 120V/240V

Insulation Resistance: ＞1000MΩ（DC500V）

Withstand Voltage: 3200V

Contact Resistance: 0.5mΩ Max

Certificate: CE TUV

Plug Type: SAE J1772/IEC 62196-2

Application: AC Home Charging

Color: Costomized

Inquery Now

Prev Next

Description

UL Certificate 70A 80A J1772 Plug Type 1 EV Connector J1772 Extension Cable

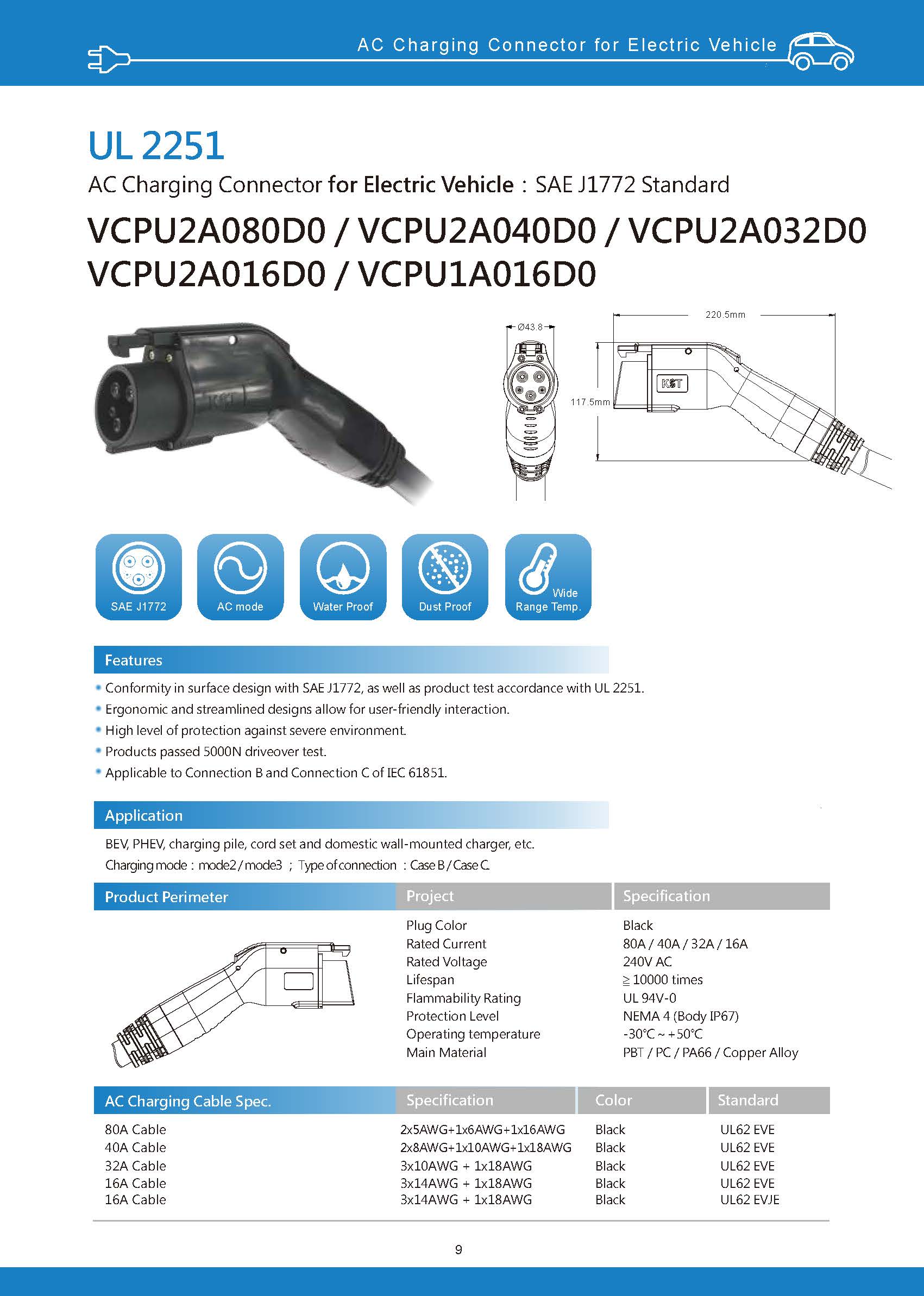

AC Charging Connector for Electric Vehicle : SAE J1772 Standard
VCPU2A080DO / VCPU2A040D0 / VCPU2A032D0VCPU2A016D0 / VCPU1A016D0

Features
● Conformity in surface design with SAE J1772, as well as product test accordance with UL 2251.
● Ergonomic and streamlined designs allow for user-friendly interaction.
● High level of protection against severe environment.
● Products passed 5000N driveover test.
● Applicable to Connection B and Connection C of IEC 61851.

Application
BEV, PHEV, charging pile, cord set and domestic wall-mounted charger, etc.
Charging mode: mode2 / mode3.
Type ofconnection : Case B / Case C.

Product Perimeter	Project	Specification
	Plug Color Rated Current Rated Voltage Lifespan Flammability Rating Protection Level Operating temperature Main Material	Black 80A / 40A / 32A / 16A 240V AC 10000 times UL 94V-0 NEMA 4 ( Body IP67 ) -30°C+ 50 °C PBT / PC / PA66 / Copper Alloy

AC Charging Cable Spec	Specification	Color	Standard
80A Cable 40A Cable3 2A Cable 16A Cable 16A Cable	2X5AWG + 1X6AWG + 1X16AWG 2X8AWG-1X10AWG-1X18AWG 3X10AWG + 1X18AWG 3X14AWG + 1X18AWG 3X14AWG + 1X1 & AWG	Black Black Black Black Black	UL62EVE UL62EVE UL62EVE UL62EVE UL62EVJE
